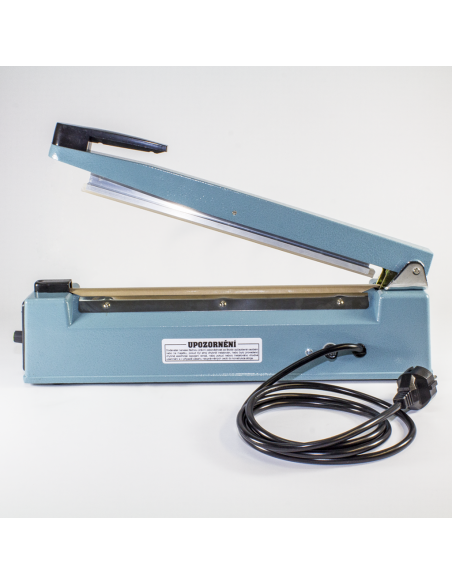

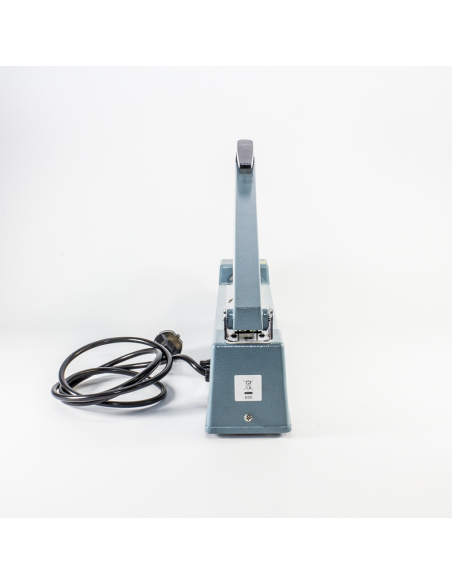

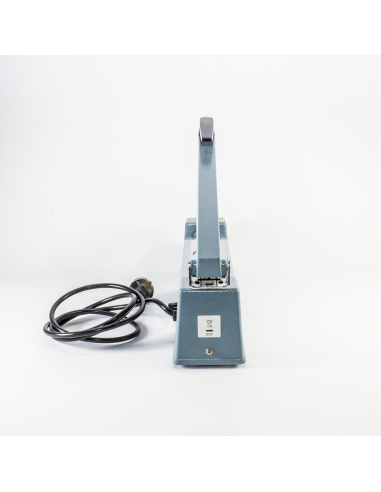

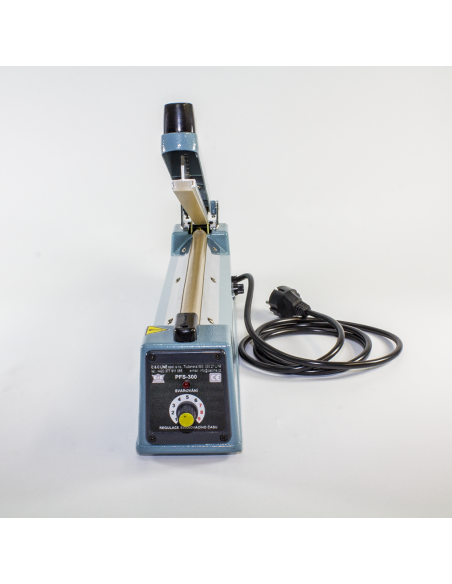

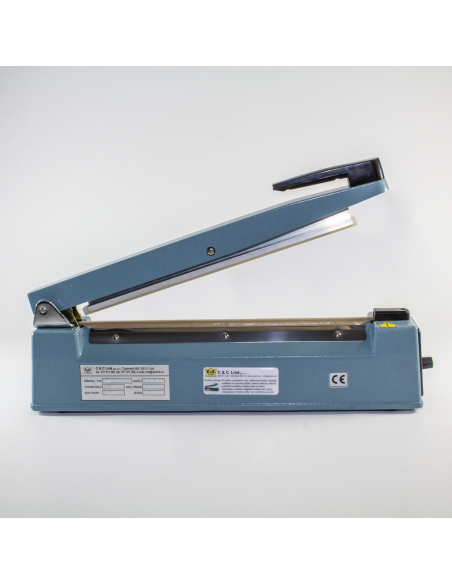

PFS 300 Hand Impulse Sealer
302
In Stock
Kč2,514.00
Tax excluded
Hand Impulse Sealer with the sealing up to 300 mm.
Hand Impulse Sealer with the sealing up to 300 mm.
The maximum thickness of the sealed material: 2x0,08mm.
| Value | Unit | Model | ||||
| PFS–100 | PFS-200 | PFS-300 | PFS-400 | PFS-500 | ||
| Rated supply voltage | V | 230 | 230 | 230 | 230 | 230 |
| Rated frequency | Hz | 50 | 50 | 50 | 50 | 50 |
| Impulse power | W | 200 | 300 | 400 | 500 | 800 |
| Degree of protection (IP code) | - | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 |
| Maximum length of the sealing | mm | 100 | 200 | 300 | 400 | 500 |
| Time of sealing | s | 0,2 – 1,5 | 0,2 – 1,5 | 0,2 – 1,5 | 0,2 – 1,5 | 0,2 – 1,5 |
| Sizes: length x width x height | mm | 230x70x140 | 320x80x150 | 450x80x180 | 550x90x180 | 650x100x180 |
| Weight | kg | 2 | 2,7 | 4,5 | 5,5 | 6,5 |
- Width
- 80 mm
- Height
- 180 mm
- Délka
- 450 mm
- Weight
- 7.2 kg
- Jednoduchá tloušťka materiálu
- 0.08 mm (80 mic)
- Compositions
- AL
- Šířka sváru
- 3 mm
- Maximální délka sváru
- 300 mm
- Napětí
- 230 V
- Frekvence
- 50 Hz
- Jištění
- 6 A
- Stupeň ochrany
- IP 20
- Příkon
- 400 W
- Svařovací čas
- 0.2 - 1.5 sec.
