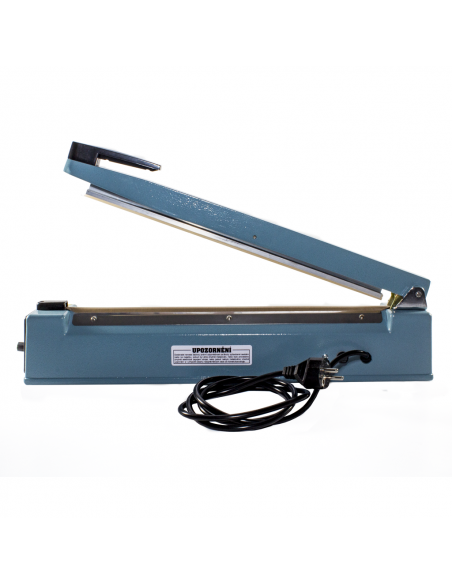

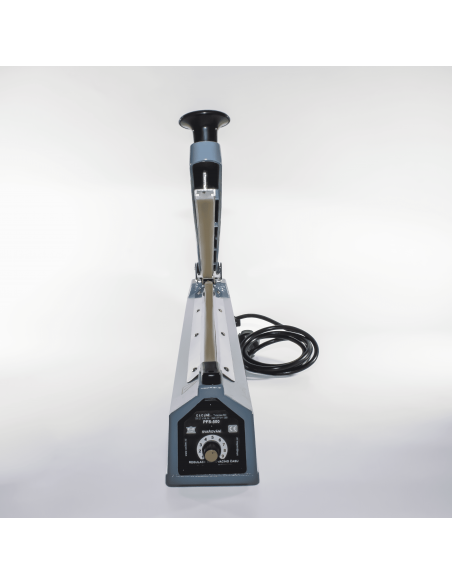

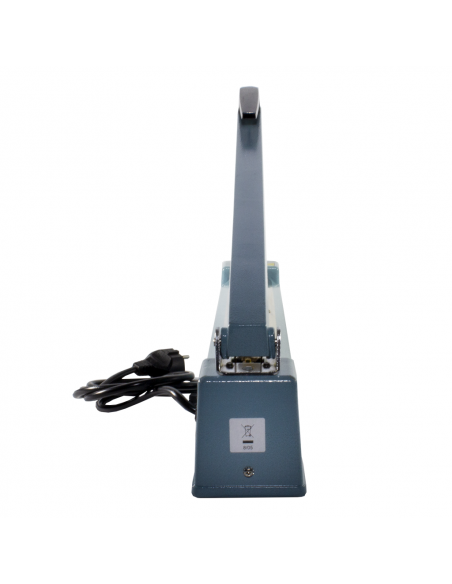

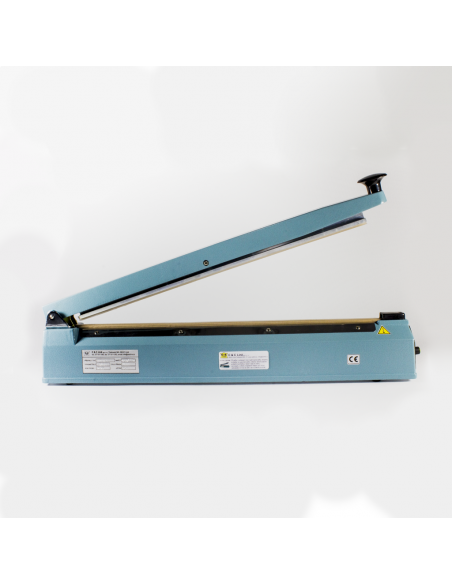

PFS 500 Hand Impulse Sealer
PFS 500 Hand Impulse Sealer
PFS 500 Hand Impulse Sealer
PFS 500 Hand Impulse Sealer
PFS 500 Hand Impulse Sealer

PFS 500 Hand Impulse Sealer

304
Out-of-Stock
Kč3,628.00
Tax excluded

Hand Impulse Sealer with the sealing up to 500 mm.

Hand Impulse Sealer with the sealing up to 500 mm.
The maximum thickness of the sealed material 2x0,08mm.


Value Unit Model
PFS–100 PFS-200 PFS-300 PFS-400 PFS-500
Rated supply voltage V 230 230 230 230 230

Rated frequency

Hz 50 50 50 50 50
Impulse power W 200 300 400 500 800
Degree of protection (IP - code) - IP 20 IP 20 IP 20 IP 20 IP 20
Maximum length of the sealing mm 100 200 300 400 500
Time of sealing s 0,2 – 1,5 0,2 – 1,5 0,2 – 1,5 0,2 – 1,5 0,2 – 1,5
Sizes: length x widrth x height mm 230x70x140 320x80x150 450x80x180 550x90x180 650x100x180
Weight kg 2 2,7 4,5 5,5 6,5
Width
100 mm
Height
180 mm
Délka
650 mm
Weight
6.5 kg
Jednoduchá tloušťka materiálu
0.08 mm (80 mic)
Compositions
AL
Šířka sváru
3 mm
Maximální délka sváru
500 mm
Napětí
230 V
Frekvence
50 Hz
Jištění
10 A
Stupeň ochrany
IP 20
Příkon
800 W
Svařovací čas
0.2 - 1.5 sec.
