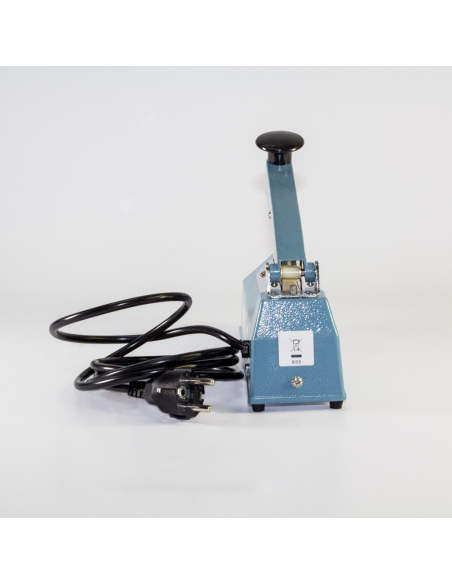

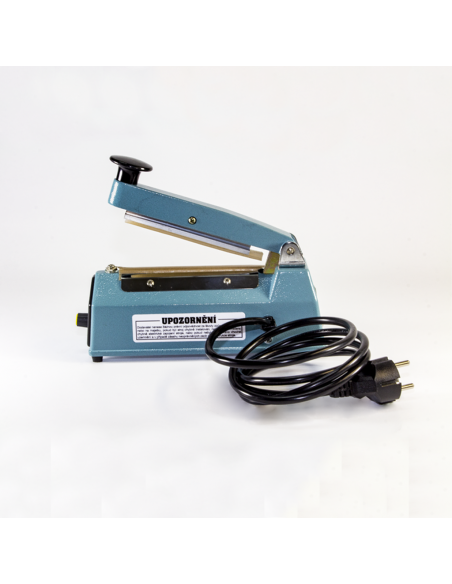

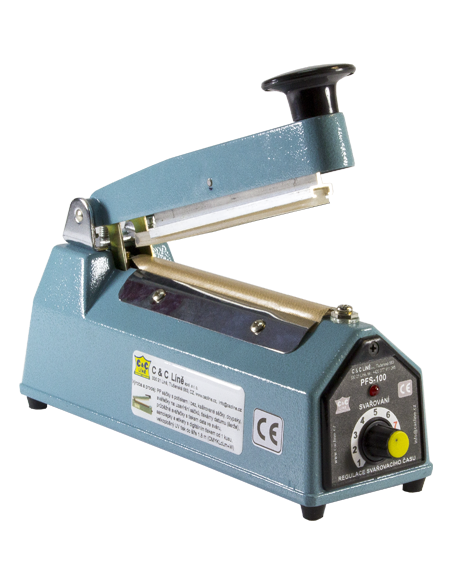

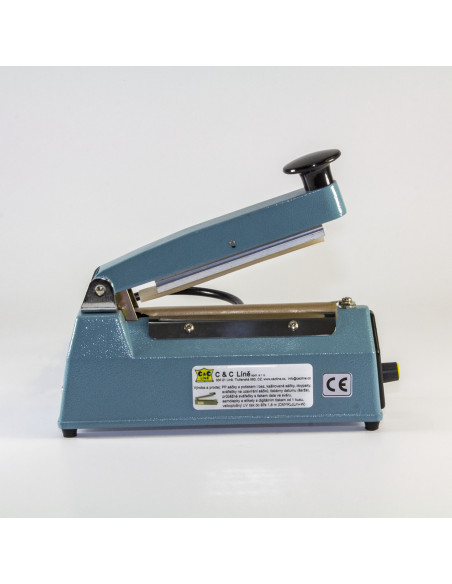

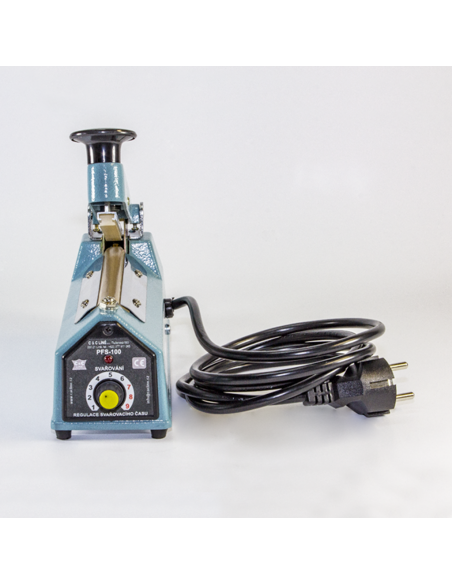

PFS 100 Hand Impulse Sealer
300
In Stock
Kč1,359.00
Tax excluded
Hand Impulse Sealer with the sealing up to 100 mm.
Hand Impulse Sealer with the sealing up to 100 mm.
The maximum thickness of the sealed material 2x0,08mm.
| Value | Unit | Model | ||||
| PFS–100 | PFS-200 | PFS-300 | PFS-400 | PFS-500 | ||
| Rated supply voltage | V | 230 | 230 | 230 | 230 | 230 |
| Rated frequency | Hz | 50 | 50 | 50 | 50 | 50 |
| Impulse power | W | 200 | 300 | 400 | 500 | 800 |
| Degree of protection (IP code) | - | IP 20 | IP 20 | IP 20 | IP 20 | IP 20 |
| Maximum sealing length | mm | 100 | 200 | 300 | 400 | 500 |
| Time of sealing | s | 0,2 – 1,5 | 0,2 – 1,5 | 0,2 – 1,5 | 0,2 – 1,5 | 0,2 – 1,5 |
| Sizes: length x width x height | mm | 230x70x140 | 320x80x150 | 450x80x180 | 550x90x180 | 650x100x180 |
| Weight | kg | 2 | 2,7 | 4,5 | 5,5 | 6,5 |
- Width
- 70 mm
- Height
- 140 mm
- Délka
- 230 mm
- Weight
- 2 kg
- Jednoduchá tloušťka materiálu
- 0.08 mm (80 mic)
- Compositions
- AL
- Šířka sváru
- 2 mm
- Maximální délka sváru
- 100 mm
- Napětí
- 230 V
- Frekvence
- 50 Hz
- Jištění
- 6 A
- Stupeň ochrany
- IP 20
- Příkon
- 200 W
- Svařovací čas
- 0.2 - 1.5 sec.
